Scout AWS Radar - resource inventory and cost metrics

Overview​

AWS Radar is a lightweight agent that polls the AWS APIs on an interval and exposes resource counts (how many EC2 instances, RDS clusters, S3 buckets, Lambda functions, and so on) and cost metrics in Prometheus format. Point your OpenTelemetry Collector at its /metrics endpoint and the inventory and spend of an AWS account land in base14 Scout alongside the rest of your telemetry.

It reads across ~85 AWS services and never writes - every permission it needs is a List, Describe, or Get. The reader profile is DevOps and SRE engineers running one or more AWS accounts who want inventory and cost on the same dashboards as their logs, metrics, and traces.

TL;DR
  • Deploy the Helm chart from charts.base14.io into your cluster.
  • Hand it the keys of a read-only IAM user (managed ReadOnlyAccess, or the least-privilege policy below).
  • Have the Collector scrape its /metrics endpoint and export to Scout.
  • Optionally enable Cost Explorer and CUR 2.0 for spend metrics - each needs a small extra grant.

What it looks like​

Once AWS Radar is scraping into Scout, you can build cost and inventory dashboards from its metrics - month-to-date and amortized spend, cost by service and region, and the daily trend of unblended vs amortized cost:

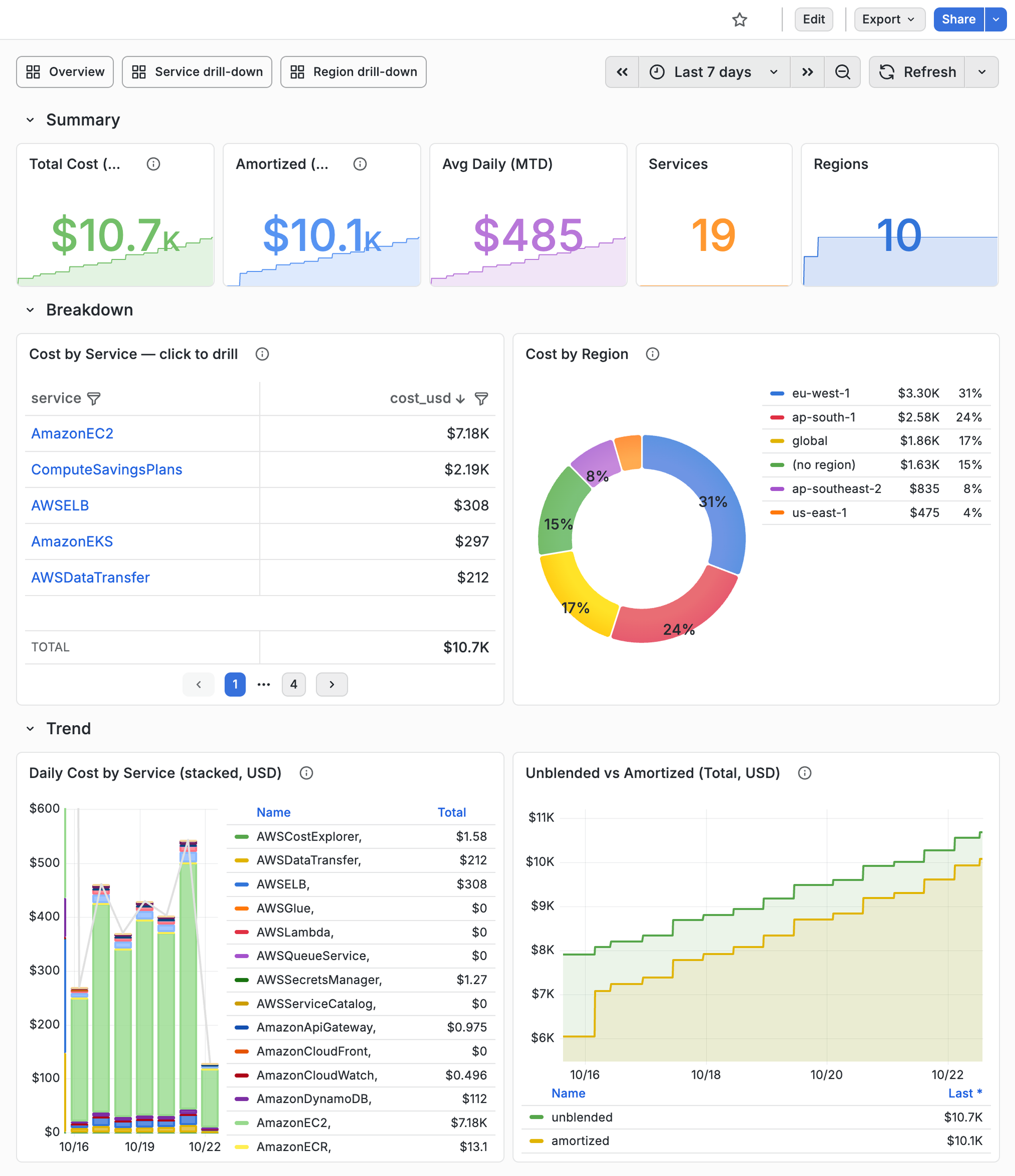

Scout AWS Radar cost dashboard showing month-to-date and amortized spend, cost by service and region, and the daily cost trend

How it works​

          read-only AWS APIs
AWS Radar ─────────────────▶ EC2, RDS, S3, Lambda, ... (List/Describe/Get)
    │
    │ /metrics (Prometheus, :9090)
    ▼
OTel Collector ──(OTLP)──▶ base14 Scout
 (prometheus receiver)

AWS Radar runs one Deployment per instance (one AWS account), each with its own ConfigMap, Service, and - when you let the chart manage it - a Secret holding that account's credentials. The Collector's prometheus receiver scrapes each instance's Service and forwards the metrics to Scout through the Scout OTLP exporter.

Prerequisites​

  • A Kubernetes cluster with the OpenTelemetry Collector already sending to Scout (see Collector setup).
  • Permission to create an IAM user and policy in each AWS account you want to watch.
  • helm 3.x.

Install with Helm​

The chart is published to the base14 public Helm repository.

helm repo add base14 https://charts.base14.io
helm repo update

1. Create the credentials Secret​

AWS Radar reads each account with an IAM user's access keys. Create the Secret in the target namespace:

kubectl create namespace aws-radar

kubectl create secret generic aws-radar-credentials \
  --namespace aws-radar \
  --from-literal=AWS_ACCESS_KEY_ID=AKIA... \
  --from-literal=AWS_SECRET_ACCESS_KEY=...
note

Using an external secrets manager? Point your ExternalSecret at a Secret with the same two keys (AWS_ACCESS_KEY_ID, AWS_SECRET_ACCESS_KEY) and reference it by name below - the chart will skip creating its own Secret.

2. Write a values file​

# values.yaml
instances:
  - name: prod
    awsAccountName: my-prod-account      # labels every metric from this account
    secrets:
      awsCredentials:
        secretName: aws-radar-credentials
    aws:
      regions:
        - us-east-1
        - eu-west-1

common:
  # Poll interval. Longer intervals cost fewer API calls; tune per account.
  collection:
    interval: 1h

By default AWS Radar scans every supported service. Narrow the set per instance with a collectors: list (for example collectors: [ec2, s3, rds, lambda]) if you only care about a subset.

3. Install​

helm install aws-radar base14/aws-radar \
  --namespace aws-radar \
  -f values.yaml

4. Scrape it into Scout​

AWS Radar exposes metrics on port 9090 at /metrics. Add the aws-radar Service as a scrape target on your Collector's prometheus receiver and send the result through the Scout exporter:

receivers:
  prometheus:
    config:
      scrape_configs:
        - job_name: aws-radar
          scrape_interval: 60s
          static_configs:
            - targets: ['aws-radar-prod.aws-radar.svc:9090']

For the full pipeline, see OTel Collector configuration.

IAM permissions​

AWS Radar is read-only. Create one IAM user per account, attach a policy, and put its access keys in the Secret above.

Quick path - AWS managed policy​

Attach the AWS-managed ReadOnlyAccess policy. It is broader than AWS Radar needs, but it is one line and always covers newly added collectors:

aws iam attach-user-policy \
  --user-name aws-radar \
  --policy-arn arn:aws:iam::aws:policy/ReadOnlyAccess

Least-privilege path - custom policy​

For a tightly scoped user, attach only the actions AWS Radar actually calls - one List/Describe/Get per service, plus tag:GetResources and sts:GetCallerIdentity:

AWS Radar read-only policy (149 actions)
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "AWSRadarReadOnly",
            "Effect": "Allow",
            "Action": [
                "tag:GetResources",
                "apigateway:GET",
                "autoscaling:DescribeAutoScalingGroups",
                "autoscaling:DescribePolicies",
                "autoscaling:DescribeLifecycleHooks",
                "autoscaling:DescribeWarmPool",
                "autoscaling:DescribeInstanceRefreshes",
                "athena:ListWorkGroups",
                "apprunner:ListServices",
                "mq:ListBrokers",
                "ses:ListEmailIdentities",
                "ses:ListConfigurationSets",
                "ses:ListContactLists",
                "ses:GetEmailIdentity",
                "ses:GetConfigurationSet",
                "ses:GetConfigurationSetEventDestinations",
                "ses:ListSuppressedDestinations",
                "ses:ListDedicatedIpPools",
                "ses:GetAccount",
                "cloudformation:ListStacks",
                "rds:DescribeDBClusters",
                "rds:DescribeDBInstances",
                "rds:DescribeDBProxies",
                "rds:DescribeDBProxyTargets",
                "memorydb:DescribeClusters",
                "timestream:DescribeEndpoints",
                "timestream:ListDatabases",
                "timestream:ListTables",
                "fsx:DescribeFileSystems",
                "backup:ListBackupVaults",
                "kinesis:ListStreams",
                "firehose:ListDeliveryStreams",
                "kinesisanalytics:ListApplications",
                "kinesisvideo:ListStreams",
                "elasticmapreduce:ListClusters",
                "elasticbeanstalk:DescribeApplications",
                "kms:ListKeys",
                "cloudtrail:DescribeTrails",
                "cloudtrail:ListEventDataStores",
                "batch:DescribeJobQueues",
                "ecr:DescribeRepositories",
                "ecr:GetRepositoryPolicy",
                "ecr-public:DescribeRepositories",
                "ec2:DescribeInstances",
                "ec2:DescribeVpcs",
                "ec2:DescribeSubnets",
                "ec2:DescribeSecurityGroups",
                "ec2:DescribeNatGateways",
                "ec2:DescribeInternetGateways",
                "ec2:DescribeVolumes",
                "ec2:DescribeVpcEndpoints",
                "ec2:DescribeTransitGateways",
                "ec2:DescribeVpnGateways",
                "elasticfilesystem:DescribeFileSystems",
                "events:ListEventBuses",
                "events:ListRules",
                "glue:GetJobs",
                "codebuild:ListProjects",
                "codepipeline:ListPipelines",
                "codedeploy:ListApplications",
                "transfer:ListServers",
                "kafka:ListClustersV2",
                "redshift:DescribeClusters",
                "s3:ListAllMyBuckets",
                "s3:GetBucketLocation",
                "s3:GetBucketPublicAccessBlock",
                "s3:ListAccessPoints",
                "s3:ListStorageLensConfigurations",
                "lambda:ListFunctions",
                "ecs:ListClusters",
                "ecs:DescribeClusters",
                "ecs:ListServices",
                "ecs:DescribeServices",
                "ecs:ListTasks",
                "ecs:DescribeTasks",
                "ecs:DescribeTaskDefinition",
                "ecs:DescribeCapacityProviders",
                "ecs:ListTaskDefinitions",
                "eks:ListClusters",
                "eks:DescribeCluster",
                "elasticloadbalancing:DescribeLoadBalancers",
                "elasticloadbalancingv2:DescribeLoadBalancers",
                "elasticloadbalancingv2:DescribeListeners",
                "elasticloadbalancingv2:DescribeTargetGroups",
                "elasticloadbalancingv2:DescribeRules",
                "dynamodb:ListTables",
                "dynamodb:DescribeTable",
                "elasticache:DescribeCacheClusters",
                "elasticache:DescribeReplicationGroups",
                "elasticache:DescribeGlobalReplicationGroups",
                "elasticache:DescribeServerlessCaches",
                "es:ListDomainNames",
                "guardduty:ListDetectors",
                "securityhub:GetEnabledStandards",
                "inspector2:ListCoverage",
                "macie2:ListClassificationJobs",
                "wafv2:ListWebACLs",
                "secretsmanager:ListSecrets",
                "ssm:DescribeParameters",
                "ssm:ListDocuments",
                "ssm:DescribeMaintenanceWindows",
                "ssm:ListAssociations",
                "ssm:DescribePatchBaselines",
                "states:ListStateMachines",
                "sqs:ListQueues",
                "sqs:GetQueueAttributes",
                "sns:ListTopics",
                "sns:GetTopicAttributes",
                "cognito-idp:ListUserPools",
                "cognito-idp:DescribeUserPool",
                "cognito-identity:ListIdentityPools",
                "network-firewall:ListFirewalls",
                "network-firewall:ListFirewallPolicies",
                "network-firewall:ListRuleGroups",
                "fms:ListPolicies",
                "acm-pca:ListCertificateAuthorities",
                "servicecatalog:ListPortfolios",
                "servicecatalog:SearchProductsAsAdmin",
                "servicecatalog:SearchProvisionedProducts",
                "license-manager:ListLicenseConfigurations",
                "cloudfront:ListDistributions",
                "route53:ListHostedZones",
                "route53resolver:ListResolverEndpoints",
                "route53resolver:ListResolverRules",
                "acm:ListCertificates",
                "acm:DescribeCertificate",
                "iam:ListUsers",
                "iam:ListRoles",
                "iam:ListAccountAliases",
                "shield:DescribeSubscription",
                "directconnect:DescribeConnections",
                "organizations:ListAccounts",
                "organizations:ListRoots",
                "organizations:ListOrganizationalUnitsForParent",
                "controltower:ListLandingZones",
                "controltower:GetLandingZone",
                "config:DescribeConfigurationRecorders",
                "aoss:ListCollections",
                "bedrock:ListCustomModels",
                "sagemaker:ListEndpoints",
                "quicksight:ListDashboards",
                "workspaces:DescribeWorkspaces",
                "appstream:DescribeFleets",
                "connect:ListInstances",
                "amplify:ListApps",
                "globalaccelerator:ListAccelerators",
                "datasync:ListTasks",
                "dms:DescribeReplicationInstances",
                "sts:GetCallerIdentity"
            ],
            "Resource": "*"
        }
    ]
}

Cost metrics need two optional extra grants - add them only when you enable the matching feature.

FeatureExtra permissionWhen
Cost Explorerce:GetCostAndUsagecost_explorer.enabled: true
Cost and Usage Reports3:GetObject, s3:ListBucket on the CUR bucketcost_cur.enabled: true

Cost metrics​

AWS Radar reports spend two ways. Pick one - CUR is cheaper and more granular, Cost Explorer is quicker to turn on.

Cost Explorer​

The simplest cost source. Grant the user ce:GetCostAndUsage and enable it:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "AWSRadarCostExplorer",
            "Effect": "Allow",
            "Action": ["ce:GetCostAndUsage"],
            "Resource": "*"
        }
    ]
}
common:
  costExplorer:
    enabled: true
    frequency: daily     # hourly | daily | weekly | monthly
note

Every Cost Explorer GetCostAndUsage call is billable (about $0.01). Keep frequency coarse unless you need fresher numbers.

Cost and Usage Report (CUR 2.0)​

CUR 2.0 (AWS Data Exports) delivers a detailed, per-resource cost dataset to an S3 bucket as parquet, with no per-query charge. AWS Radar reads the export directly. This is the recommended path for cost attribution.

CUR / Data Exports is global and lives only in us-east-1, regardless of where your resources run - create the bucket and export there.

1. Create the bucket and export. In the AWS console go to Billing and Cost Management → Data Exports → Create export, choose Standard data export (CUR 2.0), and point it at an S3 bucket in us-east-1. Use parquet, enable include resource IDs, and set hourly granularity so cost can be attributed per resource. Note the bucket, prefix, and export name.

2. Grant AWS Radar read access via the bucket policy (the delivery statement is added for you when the export is created; add the read statement for the aws-radar user):

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "AllowRadarRead",
            "Effect": "Allow",
            "Principal": { "AWS": "arn:aws:iam::<ACCOUNT_ID>:user/aws-radar" },
            "Action": ["s3:GetObject", "s3:ListBucket"],
            "Resource": [
                "arn:aws:s3:::<CUR_BUCKET>",
                "arn:aws:s3:::<CUR_BUCKET>/*"
            ]
        }
    ]
}

3. Enable cost_cur in your values, pointing at the same bucket, prefix, and export name:

instances:
  - name: prod
    # ...credentials and regions as above...
    costCUR:
      enabled: true
      reportType: cur2             # cur2 for CUR 2.0 / Data Exports
      bucket: your-cur-bucket
      prefix: cur
      reportName: your-export-name
      format: parquet
      region: us-east-1            # CUR lives in us-east-1
      resourceTags: true           # enrich top resources with their tags

AWS Radar reads the export from s3://<bucket>/<prefix>/<reportName>/.... With resourceTags: true it also calls tag:GetResources (already in the base policy) to attach each resource's tags to its cost.

Helm values reference​

Common knobs - set under common for all instances, or on an instances[] entry to override one account.

KeyDefaultWhat it does
image.repositorydocker.io/base14/aws-radarContainer image.
instances[].name-Instance name; becomes part of the resource names.
instances[].awsAccountName""Label applied to every metric from this account.
instances[].secrets.awsCredentials.secretName""Secret holding AWS_ACCESS_KEY_ID / AWS_SECRET_ACCESS_KEY.
instances[].aws.regions[us-east-1]Regions to scan.
common.collection.interval60sHow often to poll the AWS APIs.
common.collectorsall servicesNarrow the scanned services with a list.
common.costExplorer.enabledfalseTurn on Cost Explorer spend metrics.
common.costCUR.enabledfalseTurn on CUR-based cost metrics.
common.resources128Mi / 256MiPod requests and limits.

Container configuration​

The container reads a config.yaml. When you deploy with the Helm chart it renders this file into a ConfigMap from the values above - so on Kubernetes you configure through Helm, not this file directly. Running the image standalone (Docker, ECS), you write config.yaml yourself and mount it, or point AWS_RADAR_CONFIG at it.

config.yaml​

server:
  port: 9090
  metrics_path: /metrics
  health_path: /health

collection:
  interval: 60s          # how often to poll the AWS APIs
  timeout: 30s           # per-cycle timeout

aws:
  regions:
    - us-east-1
    - eu-west-1

# Omit `collectors` to scan every supported service.
collectors:
  - ec2
  - s3
  - lambda

cost_explorer:
  enabled: false
  frequency: daily       # hourly | daily | weekly | monthly

cost_cur:
  enabled: false
  report_type: cur2      # cur (legacy CUR) | cur2 (CUR 2.0 / Data Exports)
  bucket: ""
  prefix: cur
  report_name: ""
  format: parquet        # parquet | csv ("" auto-detects from the manifest)
  frequency: daily       # hourly | daily
  region: us-east-1      # CUR lives in us-east-1
  max_resources: 100     # top-N resources to attribute cost to
  resource_tags: false   # enrich those resources with their tags

logging:
  level: info            # debug | info | warn | error
  format: json           # json | text

The Helm values map onto these fields - for example common.collection.interval sets collection.interval, and instances[].costCUR.reportType sets cost_cur.report_type.

Environment variables​

VariableDescription
AWS_ACCESS_KEY_IDAWS access key. Required.
AWS_SECRET_ACCESS_KEYAWS secret key. Required.
AWS_REGIONDefault region, used when none is set in config.yaml. Optional.
AWS_RADAR_CONFIGPath to the config file, overriding the default ./config.yaml and /app/config.yaml lookup.
AWS_RADAR_ACCOUNT_NAMEAccount name used to label metrics. Optional; otherwise resolved via Organizations or the IAM account alias.

Metrics​

Every metric is prefixed with aws_; inventory counts end in _total.

aws_ec2_instances_total{region="us-east-1",instance_type="t3.micro",state="running"} 5
aws_lambda_functions_total{region="us-east-1",runtime="python3.9"} 10
aws_s3_buckets_total{region="us-east-1"} 25
aws_cost_total_unblended_usd{account_name="prod",period_start="2026-03-03"} 142.17

Cost metrics are aws_cost_service_unblended_usd (per service) and aws_cost_total_unblended_usd (per account).

FAQ​

Does AWS Radar need write access to my AWS account?​

No. Every permission it uses is a List, Describe, or Get, plus tag:GetResources and sts:GetCallerIdentity. It never creates, modifies, or deletes anything.

How do I monitor more than one AWS account?​

Add another entry to instances[] with that account's own credentials Secret and regions. Each instance runs as its own Deployment and labels its metrics with awsAccountName.

Which is better for cost, Cost Explorer or CUR?​

CUR 2.0 is cheaper and more detailed - it is delivered to S3 with no per-query charge and carries per-resource cost. Cost Explorer is faster to enable but bills roughly $0.01 per GetCostAndUsage call, so keep its frequency coarse.

Why does CUR have to be in us-east-1?​

The AWS CUR / Data Exports APIs are global and only exist in us-east-1. The bucket and export live there even though the resources they bill for can run in any region.

Last updated on
Was this page helpful?
