Stop Deploying Broken OTel Configs: Validate & Test Before You Ship

OpenTelemetry Collector configurations are YAML files. There's no schema, no type system, and no IDE that will tell you that tail_smapling isn't a real processor. You find out when your pipeline goes dark and someone starts paging the on-call.

The collector ships with otelcol validate, which catches syntax errors and fails on unknown component types. That covers a slice of the problem. It won't tell you that your send_batch_max_size is smaller than your send_batch_size, that your memory limiter is effectively disabled, or that you've hardcoded an API key in plain text.

Scout CLI addresses all of these with two complementary commands. scout config validate runs a 6-stage static analysis pipeline offline against the otelcol-contrib component registry. It validates structure, component names, pipeline references, semantic correctness, and security anti-patterns in a single command. scout config test goes further — it spawns an actual collector, sends OTLP probes through each pipeline, and confirms data flows end-to-end. Together they catch both configuration errors and runtime failures before deployment.

See it in action

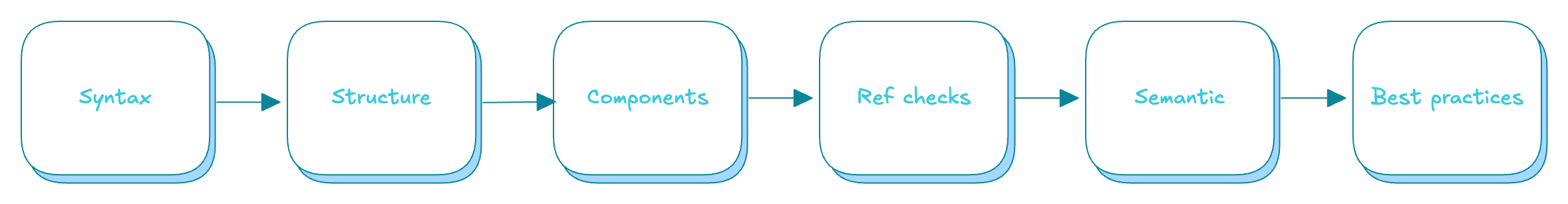

The 6 stage validation pipeline

The validation runs as a 6 stage pipeline. Each stage builds on the results of the previous one, and here's what each stage catches. Later stages are skipped if earlier ones produce errors, which avoids cascading false positives.

Stage 1: Parse

YAML syntax validation. Catches malformed YAML, duplicate keys, empty input, and multi-document files. Errors include line and column numbers.

A duplicate key is easy to introduce when copying blocks between configs:

otel-collector-config.yaml

processors:
  batch:
    send_batch_size: 512
  batch:              # duplicate key, silently overwrites the first
    send_batch_size: 1024

[ERROR] line 4, col 3: duplicated key: "batch"

YAML parsers in most languages silently take the last value. Your carefully tuned batch size disappears without a trace.

Stage 2: Structure

Validates the shape of the config. Checks for required top-level keys (service, service.pipelines) and ensures each pipeline declares both receivers and exporters.

otel-collector-config.yaml

service:
  pipelines:
    traces:
      processors: [batch]
      exporters: [otlp]
      # forgot receivers

[ERROR] service.pipelines.traces: pipeline "traces" is missing required key: "receivers"

Stage 3: Components

Every component definition is checked against the otelcol-contrib registry, which includes 180+ receivers, 50+ processors, and 70+ exporters. The match is underscore-insensitive, so memory_limiter and memorylimiter both resolve correctly.

otel-collector-config.yaml

processors:
  tail_smapling:        # typo
    decision_wait: 10s
    num_traces: 100

[WARN] processors: "tail_smapling" is not a known otelcol-contrib component

This is one of the most common config mistakes. The collector loads the config without complaint, the processor does nothing, and your pipeline runs without tail-based sampling.

Stage 4: Cross-references

Verifies that every component referenced in a pipeline is actually defined, and flags components that are defined but never used.

otel-collector-config.yaml

receivers:
  otlp:
    protocols:
      grpc:
        endpoint: 0.0.0.0:4317

exporters:
  otlphttp:
    endpoint: https://otel.example.com

service:
  pipelines:
    traces:
      receivers: [otlp]
      processors: [batch]        # not defined above
      exporters: [otlphttp]

[ERROR] service.pipelines.traces: references undefined processor "batch"

A missing definition is an instant collector startup failure. Catching it before deployment saves you a rollback.

Stage 5: Semantic

This is where the validator goes beyond what syntax and structure can catch. It validates that configuration values are internally consistent.

otel-collector-config.yaml

processors:
  batch:
    send_batch_size: 1000
    send_batch_max_size: 500    # max < size
  memory_limiter:
    check_interval: 0s          # effectively disabled
    limit_mib: 512

[ERROR] processors.batch: send_batch_max_size (500) < send_batch_size (1000)
[ERROR] processors.memory_limiter: check_interval is 0 or unset; memory limiter is effectively disabled

Other semantic checks include:

• spike_limit_mib >= limit_mib (soft limit becomes zero or negative)
• OTLP gRPC exporters with http:// scheme (should be bare host:port or https://)
• Circular pipeline dependencies via connectors (detected with DFS cycle tracking)

These are the bugs that pass syntax validation, survive code review, and cause incidents in production.

Stage 6: Best practices and security

This stage only produces warnings, and only runs when the config has zero errors. It covers two categories.

Best-practice warnings check pipeline topology:

otel-collector-config.yaml

service:
  pipelines:
    traces:
      receivers: [otlp]
      processors: [batch, filter]    # filter after batch
      exporters: [otlphttp]

[WARN] service.pipelines.traces: filter after batch wastes resources; filter before batching

The validator knows that filtering after batching means you've already spent CPU and memory grouping data you're about to throw away. It also checks for:

• Missing memory_limiter in a pipeline (OOM risk)
• memory_limiter not first in the processor chain
• Missing batch processor (performance)
• Missing health_check extension (no liveness probe for orchestrators)
• debug exporter still present (not for production)
• Deprecated fields like ballast_size_mib
• Exporters without sending_queue or retry_on_failure
• tail_sampling after batch (splits traces across batches)

Security warnings scan for configuration anti-patterns:

otel-collector-config.yaml

exporters:
  otlphttp:
    endpoint: https://otel.example.com
    headers:
      authorization: "Bearer sk-live-abc123def456"

[WARN] exporters.otlphttp: "authorization" appears to contain a hardcoded secret; use ${env:VAR_NAME} instead

The detector scans for field names containing api_key, token, secret, password, credential, private_key, and several others. It accepts ${env:VAR_NAME} patterns as safe.

Other security checks:

• TLS min_version below 1.2
• insecure_skip_verify enabled on exporters
• Receivers binding to 0.0.0.0 without TLS
• Non-localhost receiver endpoints without TLS configured

What the output looks like

For valid configs, the validator renders a swimlane diagram of your pipeline topology:

Scout CLI v0.7.1 — validating against otelcol-contrib v0.147.0

traces
┌──────────────┐      ┌──────────────┐      ┌──────────────┐
│ RECEIVERS    │──▶   │ PROCESSORS   │──▶   │ EXPORTERS    │
├──────────────┤      ├──────────────┤      ├──────────────┤
│  otlp        │      │  batch       │      │  otlphttp    │
└──────────────┘      └──────────────┘      └──────────────┘
✔ No findings for this pipeline

─────────────────────────────────────
0 errors · 0 warnings · Config is valid

When there are findings, they appear inline under the relevant pipeline with context.

For CI and scripting, --raw outputs structured JSON:

validation.json

{
  "meta": {
    "scout_version": "0.7.1",
    "otelcol_contrib_version": "0.147.0"
  },
  "summary": {
    "valid": false,
    "error_count": 1,
    "warn_count": 2
  },
  "findings": [
    {
      "severity": "ERROR",
      "rule": "batch-max-less-than-size",
      "path": "processors.batch",
      "message": "send_batch_max_size (500) < send_batch_size (1000)"
    }
  ]
}

Live pipeline testing with scout config test

Static validation catches a wide range of config errors, but it cannot confirm that data actually flows through your pipelines. A config can pass all six validation stages and still fail at runtime — the collector binary might not support a component, a network path might be unreachable, or a processor chain might silently drop data.

scout config test fills this gap. It spawns an actual OTel Collector with your config, sends test data through each pipeline, and verifies the data comes out the other end.

How it works

1. Validates the configuration (exits early if invalid)
2. Patches the config with a debug exporter and extensions (zpages, pprof)
3. Starts the OTel Collector binary with the patched config
4. Waits for the health check endpoint
5. Sends OTLP probes for each configured pipeline (traces, metrics, logs)
6. Monitors the debug exporter output for probe data
7. Reports per-pipeline pass/fail verdicts
8. Exits with the appropriate code

The patching step is key. The command injects a debug exporter into every pipeline so it can observe what comes out without interfering with your existing pipeline structure. Use --dry-run to preview the patched config without starting the collector:

scout config test --file otel-collector-config.yaml --dry-run

Safe testing with --isolated

The --isolated flag removes all non-debug exporters from your pipelines. This prevents the test from sending probe data to production backends — useful when testing against a config that exports to a live endpoint:

scout config test --file otel-collector-config.yaml --isolated

Interactive debugging

The --interactive flag keeps the collector running after probes complete. This gives you access to zpages and pprof endpoints for manual inspection:

scout config test --file otel-collector-config.yaml --interactive

What the output looks like

When all pipelines pass, the output shows per-pipeline verdicts:

Scout CLI v0.7.1 — testing against otelcol-contrib v0.147.0

Starting collector... ✔ healthy (1.2s)

traces
  ✔ sent probe → debug exporter received probe data

metrics
  ✔ sent probe → debug exporter received probe data

logs
  ✔ sent probe → debug exporter received probe data

─────────────────────────────────────
3/3 pipelines passed · All pipelines working

When a pipeline fails, the output identifies which one and why:

Scout CLI v0.7.1 — testing against otelcol-contrib v0.147.0

Starting collector... ✔ healthy (1.4s)

traces
  ✔ sent probe → debug exporter received probe data

metrics
  ✗ sent probe → no data received within timeout

logs
  ✔ sent probe → debug exporter received probe data

─────────────────────────────────────
2/3 pipelines passed · 1 pipeline failed

For CI and scripting, --raw outputs structured JSON with the full lifecycle result, including per-pipeline verdicts and timing.

The test command requires an OTel Collector binary. It searches for otelcol-contrib or otelcol in your $PATH, or in ~/.scout/bin/. You can also specify a binary explicitly with --collector-bin.

CI integration

Both commands read from --file or stdin, so they fit into any pipeline. Run validation first (fast, no binary needed), then testing (requires a collector binary).

GitHub Actions:

.github/workflows/validate-otel.yml

- name: Validate OTel Collector config
  run: |
    scout config validate --file otel-collector-config.yaml

- name: Test OTel Collector pipelines
  run: |
    scout config test --file otel-collector-config.yaml --isolated --timeout 60

For machine-readable output in a larger workflow:

.github/workflows/validate-otel.yml

- name: Validate OTel config (JSON)
  run: |
    scout config validate --file otel-collector-config.yaml --raw > validation.json
    if [ $? -ne 0 ]; then
      echo "::error::OTel config validation failed"
      cat validation.json | jq '.findings[] | "\(.severity): \(.message)"'
      exit 1
    fi

Pre-commit hook:

.git/hooks/pre-commit

#!/bin/sh
for f in $(git diff --cached --name-only -- '*.yaml' '*.yml'); do
  if head -5 "$f" | grep -q 'receivers\|exporters\|service'; then
    scout config validate --file "$f" || exit 1
  fi
done

Pipe from stdin:

cat otel-collector-config.yaml | scout config validate

This works with config generation tools that write to stdout. Generate your config, pipe it through validation, and only write the file if it passes.

Exit codes

Both commands use exit codes designed for scripting.

scout config validate:

Code	Meaning
0	Valid (warnings are fine)
1	Validation errors found
2	I/O or usage error (file not found, no input)

scout config test:

Code	Meaning
0	All pipelines passed
1	One or more pipelines failed or partially passed
2	Configuration validation errors
3	Collector failed to start
4	No OTel Collector binary found

The collector is the narrowest point in your telemetry pipeline. Everything flows through it. A broken config doesn't just lose data, it blinds you to the problems that data was supposed to reveal. Validating and testing configs before they reach production is the cheapest fix for a class of incidents that are expensive to diagnose after the fact. Validate catches the structural and semantic errors. Test confirms the pipelines actually work.

---

Try it. Install Scout CLI with the installation guide, then run scout config validate --file your-config.yaml to check for errors and scout config test --file your-config.yaml to verify your pipelines work end-to-end.

---
